nutzen 01

REDUCTION
IN DISPOSAL COSTS
through improvement
in material quality

nutzen 02

REDUCTION
OF WASTE VOLUME
by separating the
solid and liquid phases

nutzen 03

REUSE AS
Substitute building
material

nutzen 04

COST-EFFECTIVENESS and
ENVIRONMENTAL PROTECTION

Slide 0

Recycling

4-stufiger Recyclingprozess
Das Recycling der verschiedenen Abfälle erfolgt in einem
bis zu 4-stufigen Recyclingprozess:

4-stage recycling process
The various types of waste are recycled in a
process comprising up to four stages:

Process stage 1: Material feeding 🡕

Process stage 2: Material recycling 🡕

Process stage 3: Fine particle separation 🡕

Process stage 4: Process water recycling 🡕

» Process stages 1 + 2
represent the process stages for processing the solids (minerals)

» Process stages 3 + 4
represent the process stages for treating the process water
generated during the recycling process

Slide 1

Process stage 1: Material feeding

Material is usually fed into the recycling plant directly from vacuum/flushing vehicles. Feeding via bucket wheel loaders or conveyor belts is also possible.

A distinction is made between direct and indirect material feeding. In direct material feeding, the material is fed directly into the recycling plant via the feed hopper.
In indirect material feeding, the material first enters a dosing buffer. From this buffer, the material is continuously fed into the recycling plant. This ensures a consistently high quality of the recycled material, regardless of the feed quantity and feed rate.

The dosing buffer enables rapid material feeding, thereby reducing waiting and downtime.

« Back

Continue to Process Stage 2: Material recycling »

Direct material feeding: Feed hopper

Indirect material feed: 5 m³ dosing buffer

Slide 2 - neu

Process stage 2: Material recycling

The recycling plant is the central component of the recycling system. It processes sewage sludge, drilling mud, street sweepings, grit trap sludge and other mineral waste using a wet mechanical process.

Once the material has been fed into the washing chamber, a rotating spiral conveys it through a water bath. During this process, the material is separated. At the same time, water flows through the washing chamber in a counter-current flow. This washes out unwanted components, which are then discharged together with the excess process water.

The washed mineral material >250 µm is removed from the washing chamber via a bucket elevator and fed to the spiral conveyor. This conveyor partially dewatered the material and discharges it.
The resulting process water is either further treated (e.g. chamber filter press, centrifuge) or discharged following analysis and approval.

« Back

Continue to process stage 3: Fine particle separation »

1-chamber/2-chamber recycling plant
Plant capacity: 4–30 m³/h

Recycled minerals

Slide 3 - neu

Process stage 3: Fine particle separation

To further reduce the proportion of minerals ≤250 µm in the process water, the process water is fed into the fine-particle separation stage in the next step.

Here, the mineral components >63 µm are separated, along with suspended solids and impurities.

This process not only recovers additional minerals but also reduces the amount of precipitants and flocculants required for the treatment and recovery of the water.

From the fine particle separation stage, the remaining process water containing minerals ≤63 µm is fed into an agitated tank.

« Back

Continue to Process Stage 4: Process Water Recycling »

Fine particle separation
System capacity 50–150 m³/h

Fine sand from fine particle separation

Slide 4 - neu

Process stage 4: Process water recycling

The intermittent operation of the agitators in the agitator tank prevents the mineral components contained in the process water from settling.
In the next step, the process water is fed from this agitator tank into either a chamber filter press or a centrifuge. To this end, the process water is conditioned by the addition of precipitants and flocculants.
In the chamber filter press / centrifuge, the solids are separated and discharged into a container.
The resulting water (chamber filter press: filtrate / centrifuge: centrate) enters a buffer tank and is reused in the recycling process at the recycling plant. Excess water is discharged.

« Back

Overview

Solid separation using a chamber filter press

Solid separation using a centrifuge

Slide 0

Recycling

4-stage recycling process
The various types of waste are recycled in a
process comprising up to four stages:

Process stage 1: Material feeding 🡕

Process stage 2: Material recycling 🡕

Process stage 3: Fine particle separation 🡕

Process stage 4: Process water recycling 🡕

» Process stages 1 + 2
represent the process stages for processing the solids (minerals)

» Process stages 3 + 4
represent the process stages for treating the process water
generated during the recycling process

Slide 1

Process stage 1:
Material feeding

Material is usually fed into the recycling plant directly from vacuum/flushing vehicles. Feeding via bucket wheel loaders or conveyor belts is also possible.

The dosing buffer enables rapid material feeding, thereby reducing waiting and downtime.

To Stage 2: Material recycling »

« Back

Direkte Materialaufgabe: Aufgabetrichter

Indirekte Materialaufgabe: Dosierpuffer 5 m³

Slide 2 - neu

Process stage 2:
Material recycling

To Stage 3: Fine particle separation »

« Back

Recyclinganlage

Recycelte Mineralik

Slide 3 - neu

Process stage 3:
Fine particle separation

To further reduce the proportion of minerals ≤250 µm in the process water, the process water is fed into the fine-particle separation stage in the next step.

Here, the mineral components >63 µm are separated, along with suspended solids and impurities.

This process not only recovers additional minerals but also reduces the amount of precipitants and flocculants required for the treatment and recovery of the water.

From the fine particle separation stage, the remaining process water containing minerals ≤63 µm is fed into an agitated tank.

Stage 4: Process Water Recycling »

« Back

Direkte Materialaufgabe: Aufgabetrichter

Direkte Materialaufgabe: Aufgabetrichter

Slide 4 - neu

Process stage 4: Process water recycling

Overview

« Back

Kammerfilterpresse

Zentrifuge

Slide 0

Recycling

4-stage recycling process
The various types of waste are recycled in a
process comprising up to four stages:

Process stage 1: Material feeding 🡕

Process stage 2: Material recycling 🡕

Process stage 3: Fine particle separation 🡕

Process stage 4: Process water recycling 🡕

» Process stages 1 + 2
represent the process stages for processing the solids (minerals)

» Process stages 3 + 4
represent the process stages for treating the process water
generated during the recycling process

Slide 1

Process stage 1: Material feeding

Material is usually fed into the recycling plant directly from vacuum/flushing vehicles. Feeding via bucket wheel loaders or conveyor belts is also possible.

The dosing buffer enables rapid material feeding, thereby reducing waiting and downtime.

« Back

Continue to Process Stage 2: Material recycling »

Direct material feeding: Feed hopper

Indirect material feed: 5 m³ dosing buffer

Slide 2 - neu

Process stage 2: Material recycling

« Back

Continue to process stage 3: Fine particle separation »

1-chamber/2-chamber recycling plant
Plant capacity: 4–30 m³/h

Recycled minerals

Slide 3 - neu

Process stage 3: Fine particle separation

To further reduce the proportion of minerals ≤250 µm in the process water, the process water is fed into the fine-particle separation stage in the next step.

Here, the mineral components >63 µm are separated, along with suspended solids and impurities.

This process not only recovers additional minerals but also reduces the amount of precipitants and flocculants required for the treatment and recovery of the water.

From the fine particle separation stage, the remaining process water containing minerals ≤63 µm is fed into an agitated tank.

« Back

Continue to Process Stage 4: Process Water Recycling »

Feinteilabscheidung
Anlagenleistung 50-150m³/h

Feinsand aus Feinteilabscheidung

Slide 4 - neu

Process stage 4: Process water recycling

« Back

Overview

Solid separation using a chamber filter press

Solid separation using a centrifuge

Slide

Separate. Clean. Reuse.
New building materials are produced from mineral waste.

Slide 1

Material flows

The 4-stage recycling process produces,
depending on the input material, the following material streams:

Mineral >250µm ↗

Minerals >60µm ↗

Solid ↗

Water (filtrate/centrate) ↗

Slide 1

Material flows

The 4-stage recycling process produces,
depending on the input material, the following material streams:

Mineral >250µm ↗

Minerals >60µm ↗

Solid ↗

Water (filtrate/centrate) ↗

Materialströme

Beim 4-stufigen Recyclingprozess entstehen,
abhängig vom Eingangsmaterial, folgende Materialströme:

JETZT ANFRAGE STELLEN

Mineralik >250 μm

Mineralik >63 μm

Feststoff

Wasser (Filtrat/Zentrat)

Materialströme

Beim 4-stufigen Recyclingprozess entstehen, abhängig vom Eingangsmaterial, folgende Materialströme:

JETZT ANFRAGE STELLEN

Mineralik >250 μm

Mineralik >63 μm

Feststoff

Wasser (Filtrat/Zentrat)

Slide 2

Material flow 1

Material stream 1 contains mineral particles larger than 250 µm from the recycling plant, which can be reused as a secondary raw material. This conserves primary resources and closes material cycles.

Bedrooms

Bathrooms

Area

440 sqm

« Previous

ENQUIRE NOW

Materialstrom 1

Im Materialstrom 1 wird die Mineralikfraktion >250 µm aus der Recyclinganlage abgetrennt und als hochwertiger Sekundärrohstoff einer weiteren Nutzung zugeführt. Dadurch werden natürliche Primärressourcen geschont und Stoffkreisläufe effizient geschlossen.

Jetzt Anfrage stellen

WEITER »

Slide 1

Material flows

The 4-stage recycling process produces,
depending on the input material, the following material streams:

Mineral >250µm ↗

Minerals >60µm ↗

Solid ↗

Water (filtrate/centrate) ↗

Projects

Türpe

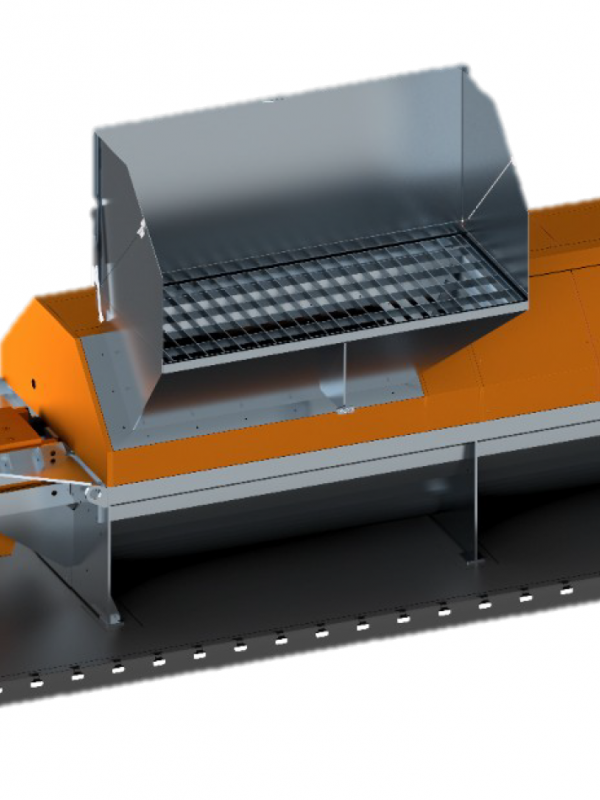

Recycling system with a dosing buffer for small quantities

Reduced waiting and downtime – stationary or mobile

Beck

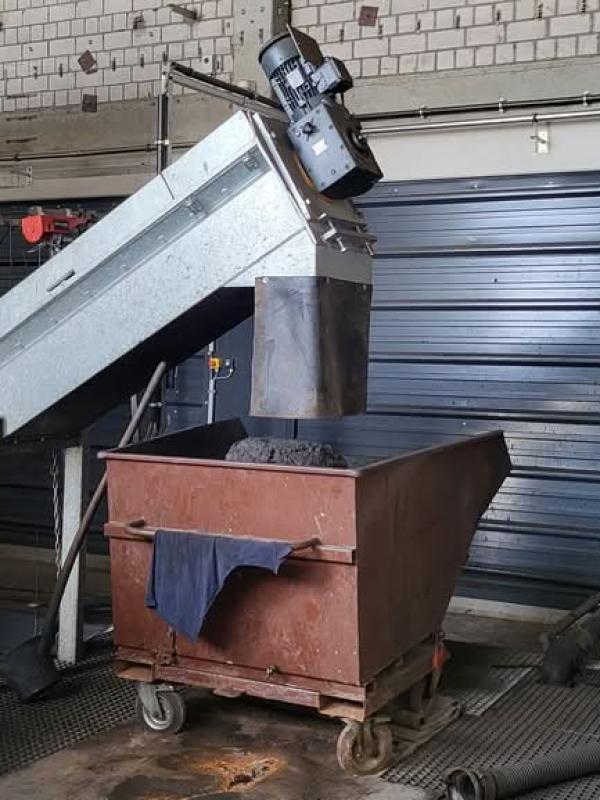

Recycling plant as the first stage of a CP treatment plant

Abtrennung von mineralischen Bestandteilen und Störstoffen

Lemberger

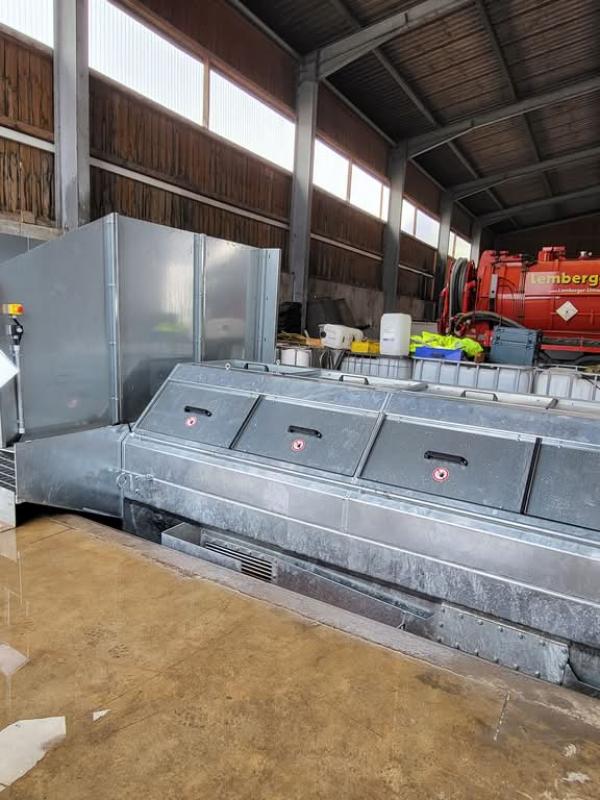

Recycling system for confined spaces

Standortauswahl
unter Nutzung bestehender Bauwerke

Huber

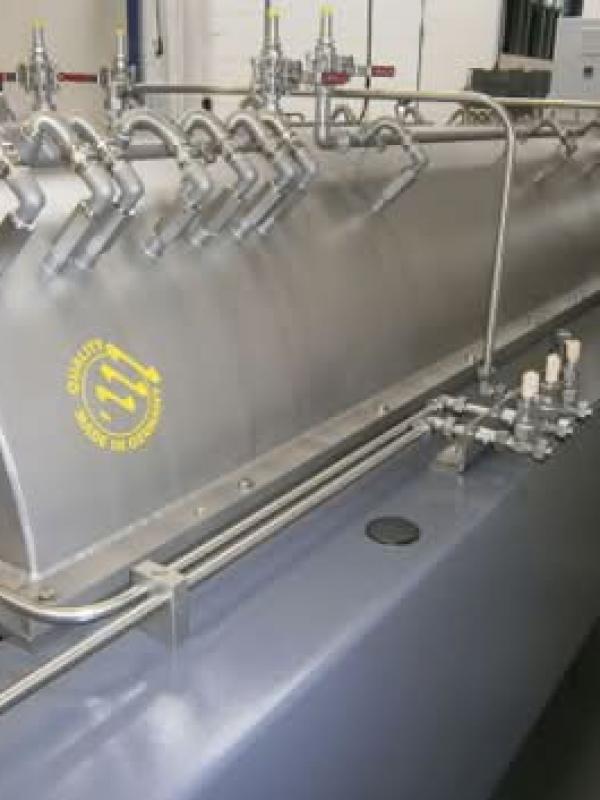

Recycling of oil and grease separator contents

An approach to producing feedstock for fuels

Nehlsen

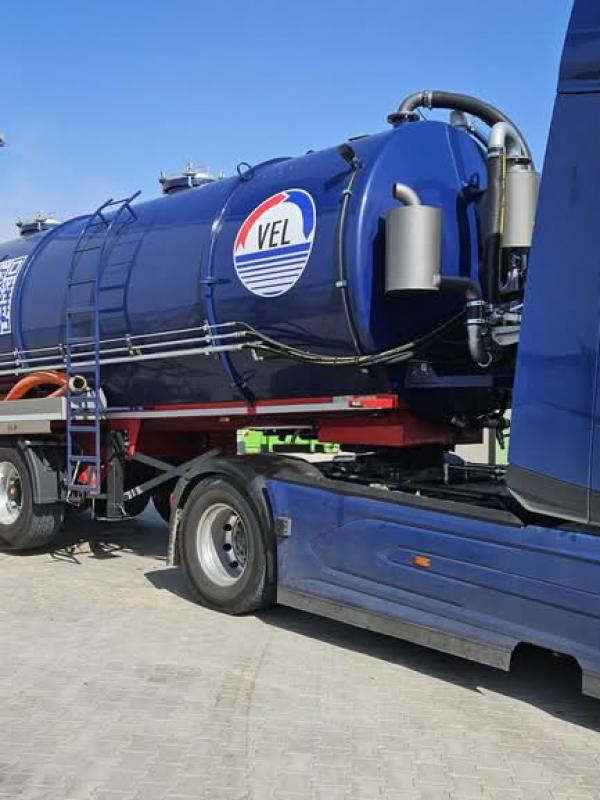

Recycling of sewer sludge, drilling mud, etc.

Substitute building material made from waste

Graalmann

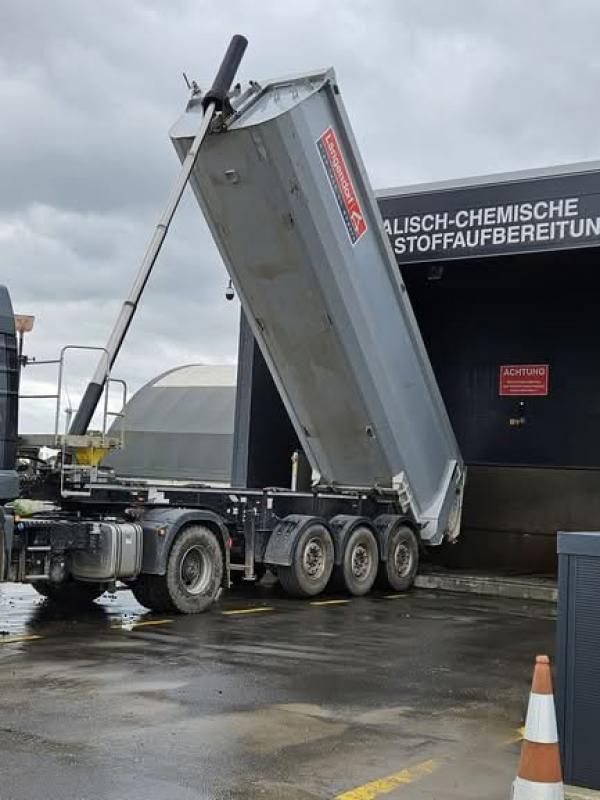

Recycling of drilling fluid

From waste to a tested building material

Lemberger

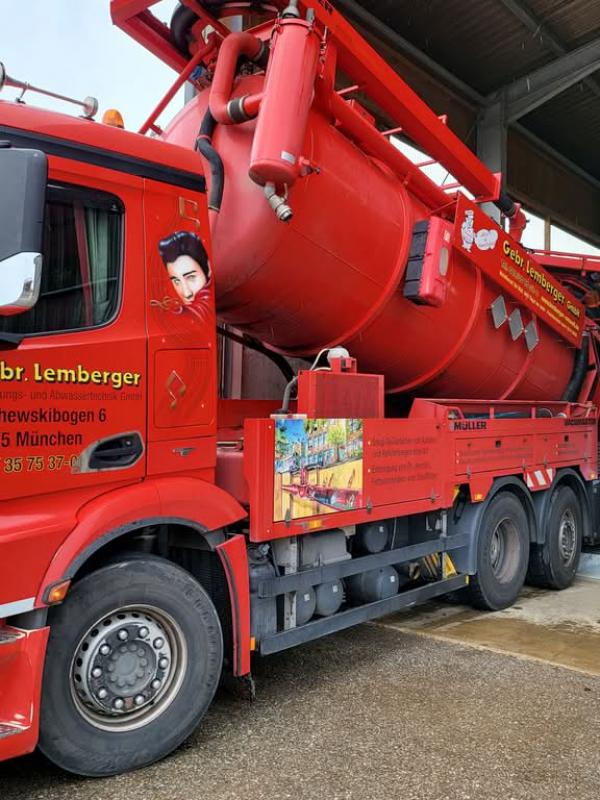

Recycling of sewage sludge

Reduction in disposal costs for sewage sludge

Reuther

Recycling of various types of waste

Case study

40 + Years

Experience

30 +

Employees

2200 +

Customers worldwide

420000 + t/Year

Recycled material

These customers are already recycling their waste using our recycling facilities
